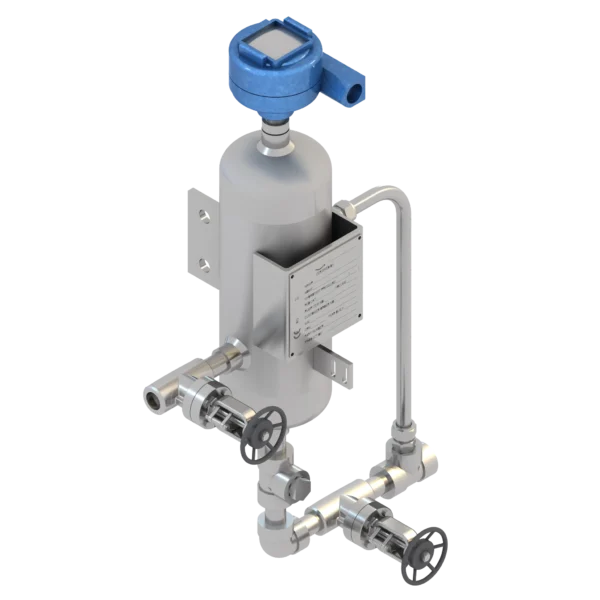

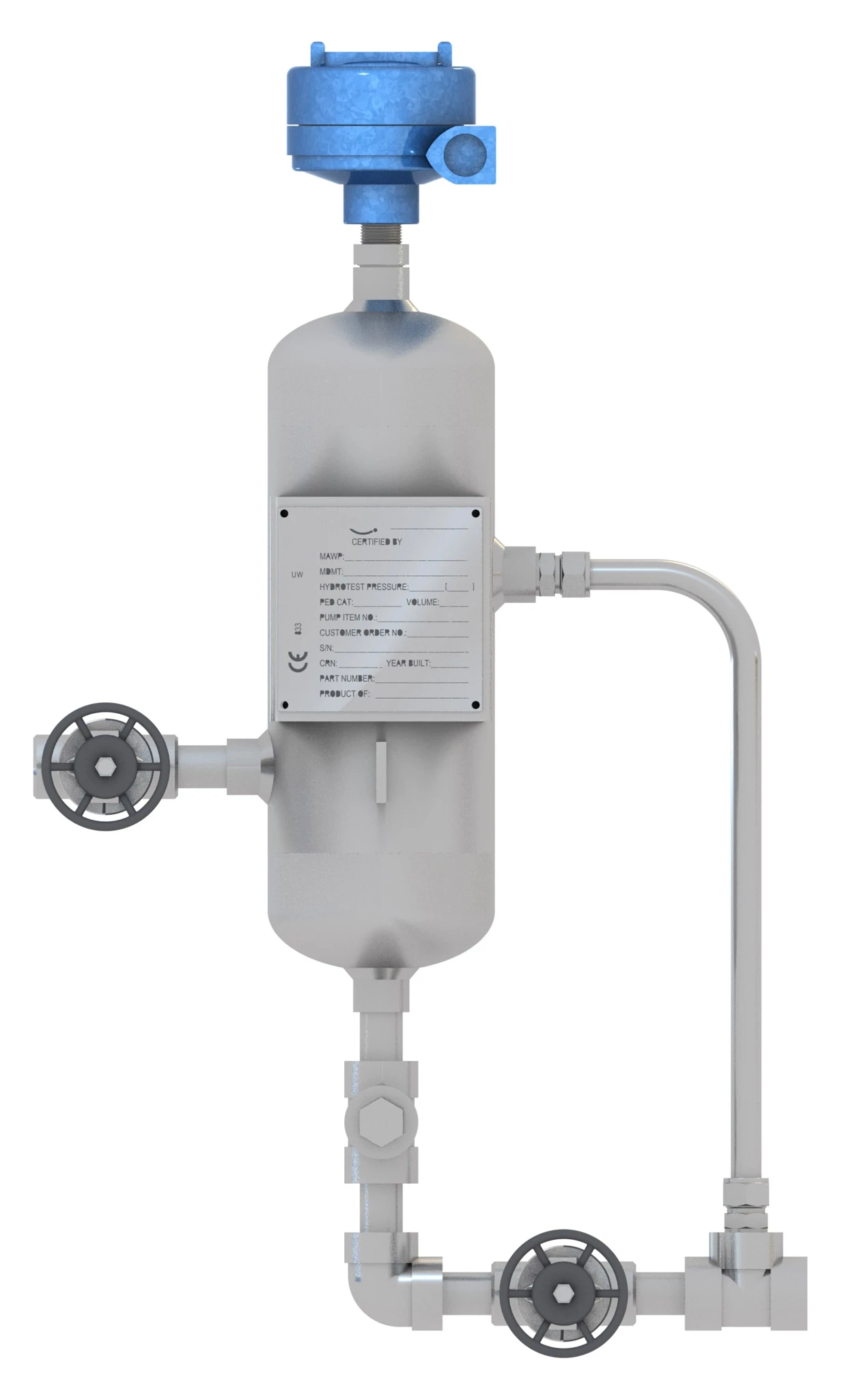

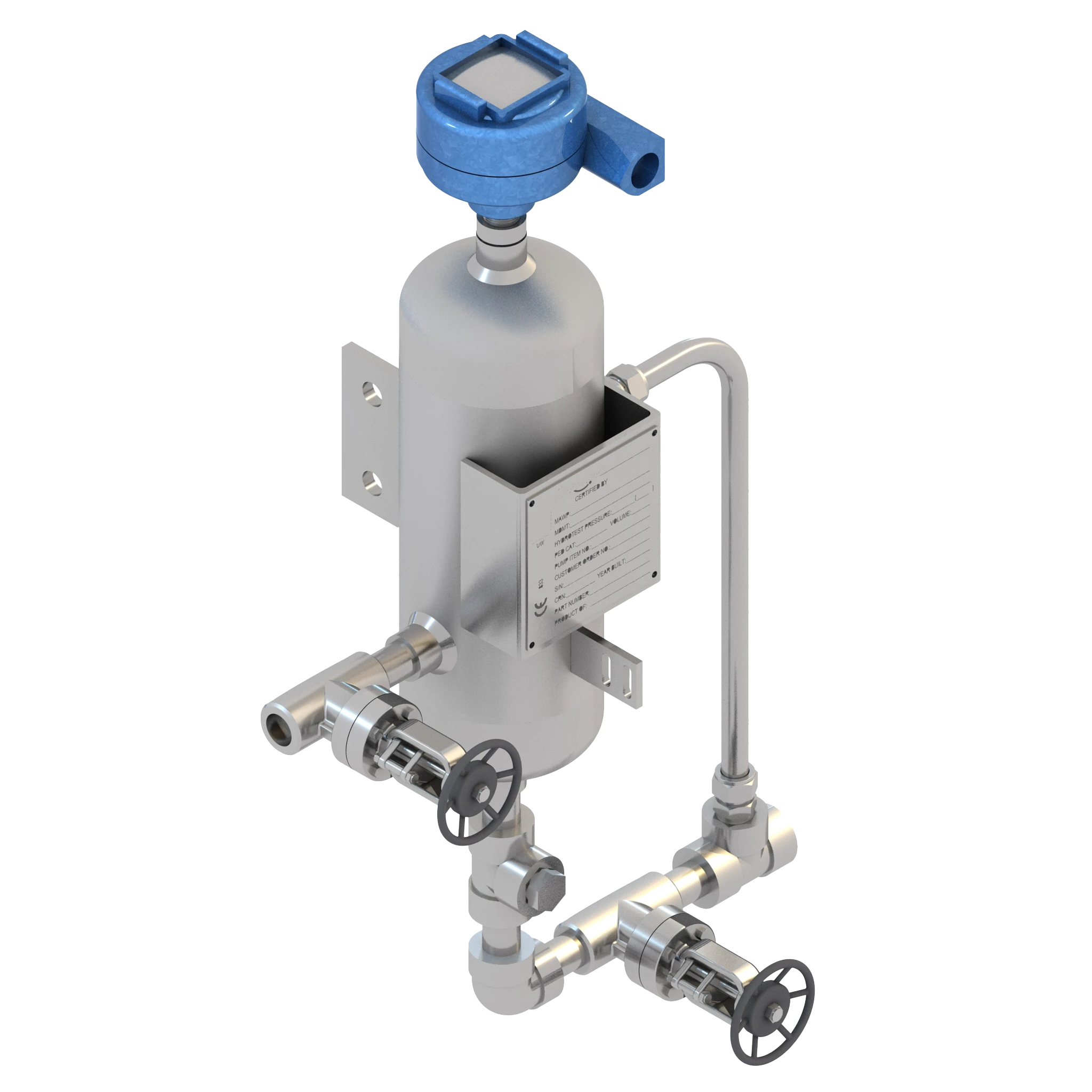

Features and Benefits of the VOI-ARA-1181 Api Reservoir:
- High maximum allowable working pressure (MAWP) 70.7 bar at 204°C (1,025 psi at 400°F)
- Designed with standard 3 liter (0.79 US gallon) effective volume complying with 682 4th edition standards
- All stainless-steel construction for superior corrosion protection
- Available with NPT, socket welded or butt welded construction with NPT or Cl 600 flange connections
- Pre-configured transmitter and switch selections for reduced lead-time
- Designed in accordance with ASME VIII.1 with optional U-stamp
- Optional PED and CRN compliance
